Sudoku Solver

The first iteration

My Sudoku Solver project began with an interest in applying theory learned in my introductory AI course. The problem can be solved directly using three nested for-loops to iterate over the rows, columns, and numbers, resulting in an (O(n^3)) runtime. To improve efficiency, I explored constraint programming as an alternative approach.

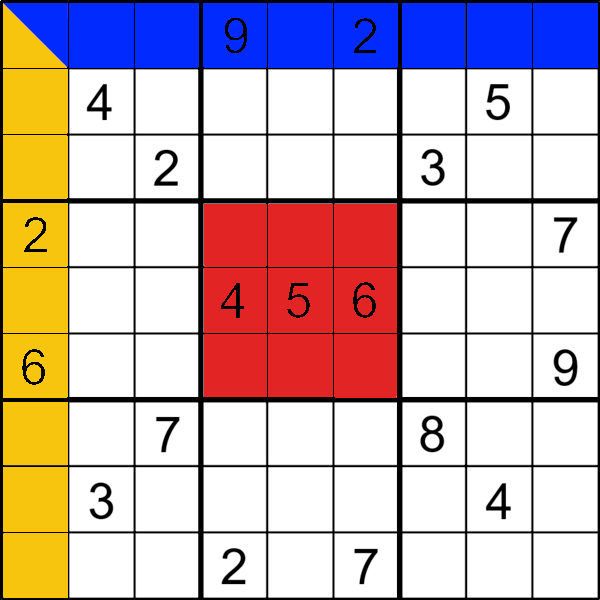

Constraint programming is a paradigm for solving combinatorial problems by defining variables and constraints that must be satisfied. Sudoku itself is inherently a constraint problem: it is a number puzzle on a 9x9 grid where each row, each column, and each 3x3 subgrid must contain unique numbers from 1 to 9 without repetition.

The solver uses the Python constraint library to model the Sudoku. Each cell is treated as a variable with a domain of possible values. Known cells have a fixed domain containing only that value. The Sudoku rules are encoded as “all different” constraints on rows, columns, and 3x3 boxes.

Using the Problem class, the solver represents variables and constraints and calls getSolution() to find a valid solution. The output is formatted into a readable Sudoku grid with clear separation of 3x3 boxes.

Initially, the solver required the Sudoku grid to be hardcoded. I later improved it by adding an input method where the user can provide the Sudoku puzzle line by line, using 0 or a dot to represent blank spaces.

This first iteration of my Sudoku Solver can be found on my GitHub.

The second iteration

In the second iteration, I aimed to improve ease of use. Manually typing a Sudoku grid is slow and testing multiple puzzles is time-consuming. To address this, I adopted a machine learning approach and trained a model to detect digits from grayscale images.

Using TensorFlow and Keras, I trained the model with the MNIST dataset, which consists of handwritten digits. This enabled me to input an image of a Sudoku puzzle to the program. By reusing the constraint programming implementation from the first iteration, I could solve puzzles from images.

The machine learning model faced challenges correctly detecting the Sudoku grid, likely due to my limited experience with machine learning best practices. I anticipate improving this after completing my introduction to machine learning course.

The code for the second iteration can be found on my GitHub.

The third iteration

The third iteration sought to complete the vision of reading a Sudoku from an image. By using rg1990’s implementation of a Sudoku reader, my solver worked as intended.

To use this version, the user must train their own model. The process is straightforward: install required libraries using the provided requirements file, then run the train.py script to generate a model, which the main program uses to solve Sudokus from images.

The code for the third iteration can be found on my GitHub.

The last iteration

The last iteration aimed to port the solver to a mobile device, allowing users to take a picture of any Sudoku and solve it on the go. The idea was to use Cython, a compiler that translates Python code into C code, making it possible to port the program to an Android app.

I encountered issues with Cython and Python 3 compatibility, which would require significant rewriting of the program. As a result, I have shelved this project for now and may revisit it in the future.

The code for the last iteration can be found on my GitHub.
